FiducialX was founded with the goal of providing highly technical, transparent, and optimized PCB design solutions.
We focus on precise design capabilities, clear processes, and consistent product performance, helping customers shorten development time and reduce risks during the manufacturing phase.
With a team of engineers specializing in high-speed digital, mixed-signal, power design, and embedded hardware, we offer reliable and suitable design services for a wide range of applications.
FIDUCIALX
In electronics, a fiducial is a “precise reference point” that helps to locate and adjust the entire layout of a system.
That’s also how we position ourselves: FiducialX – a reliable technical reference point, ensuring all client projects are developed on an accurate, stable, and well-controlled platform.
FIDUCIALX CORE VALUES
Precision – Chính xác
All designs are data-driven, adhering to IPC standards and manufacturer guidelines.
Reliability – Tin cậy
Complete handover documentation, internal review, clear timeline.
Consistency – Nhất quán
Quality is maintained throughout, from the schematic to the layout and DFM.
Clarity – Rõ ràng
Clarity – Clear
Transparent processes and communication, with full documentation of technical requirements.
FiducialX’s Service
Schematic & PCB Design
Simulation
Prototype/Pilot/MP Production Support

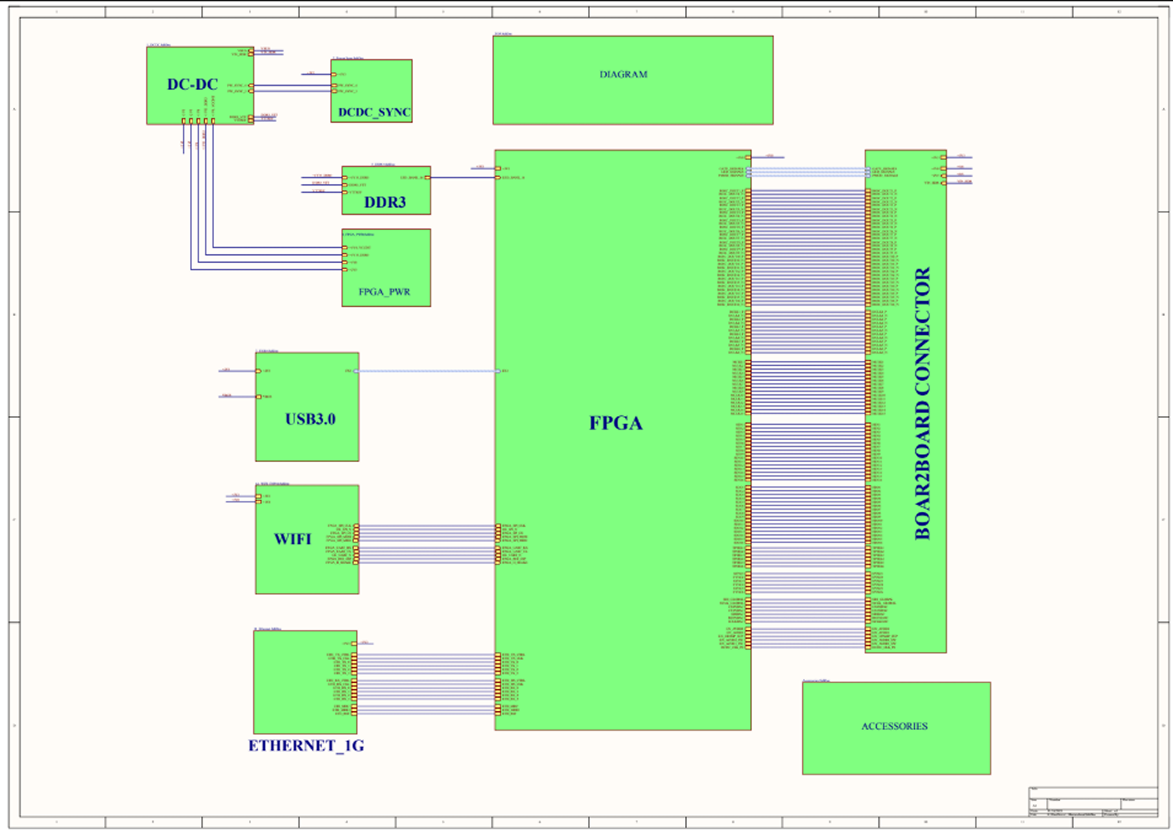

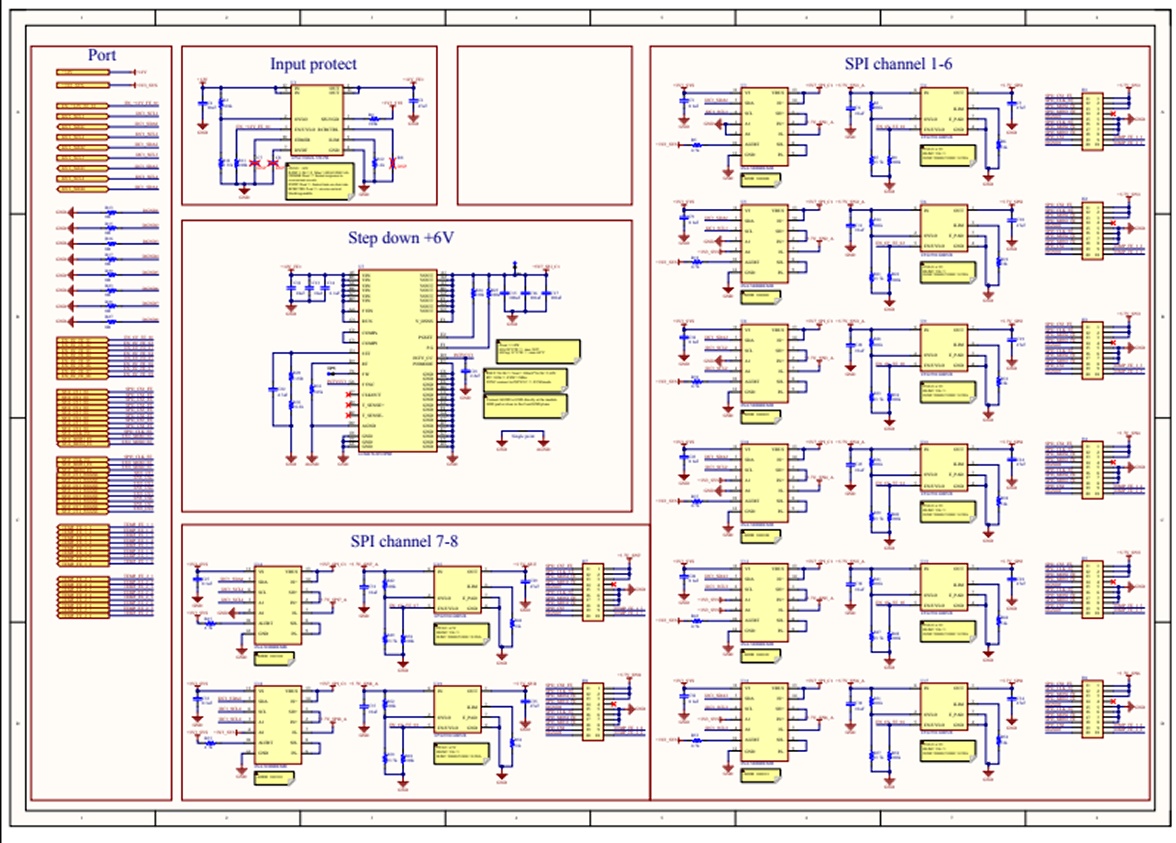

Principle design: The diagram is organized into functional blocks, hierarchical, easy to read, and suitable for complex systems.
Principle design: Consistent notation, standardized signal naming, and a clear layout simplify design review and expansion.

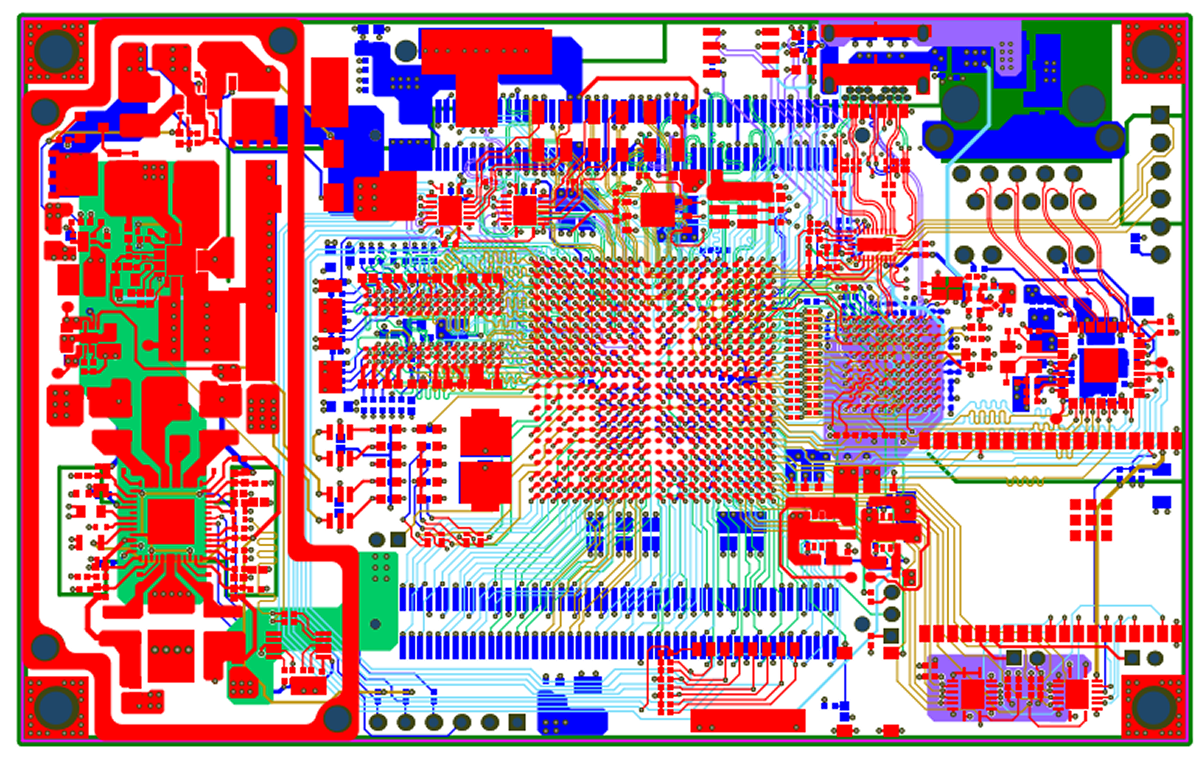

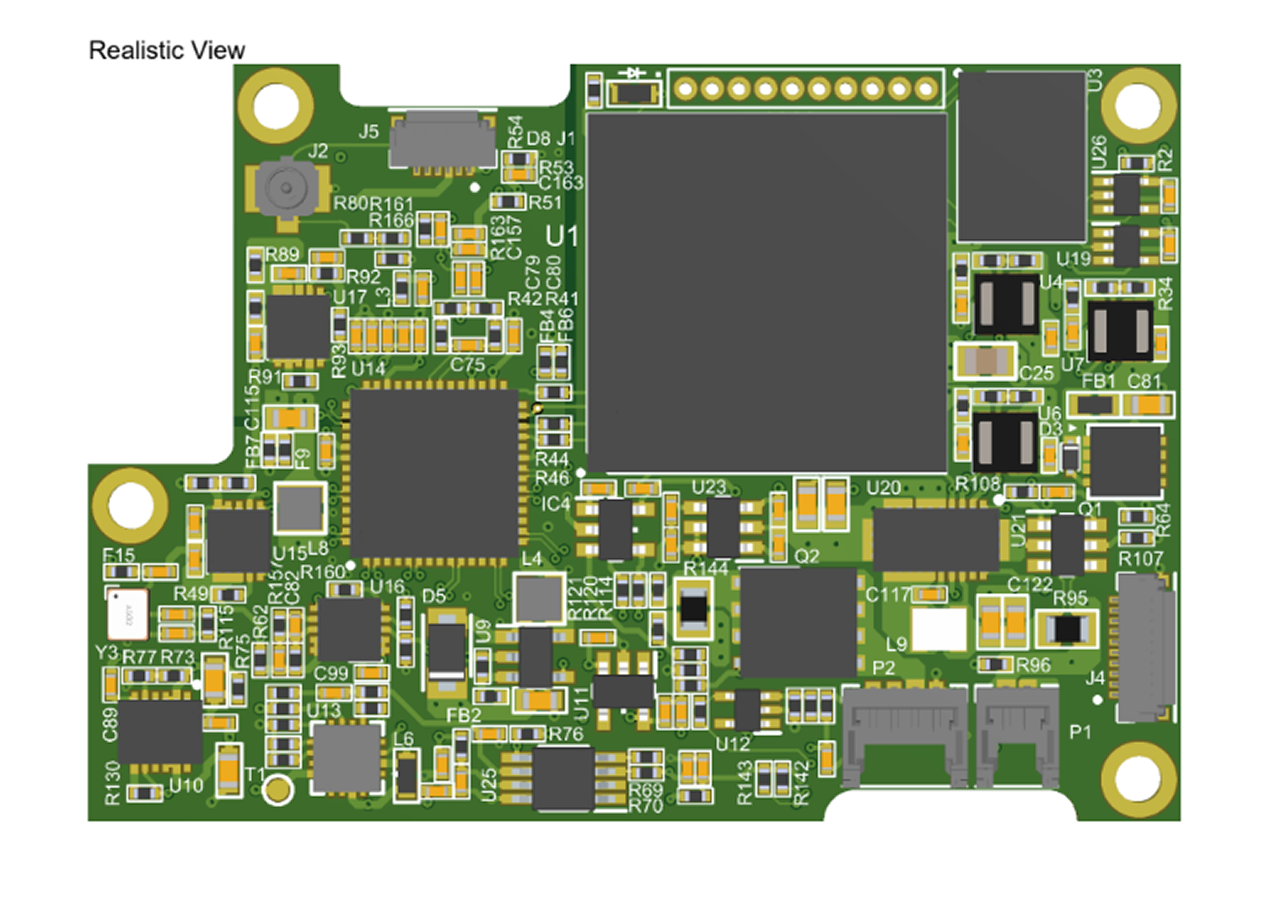

PCB design: Multi-layer stacking (16 layers) optimized for high-speed, cascaded power supply, noise control, and ensuring stable performance for demanding applications.

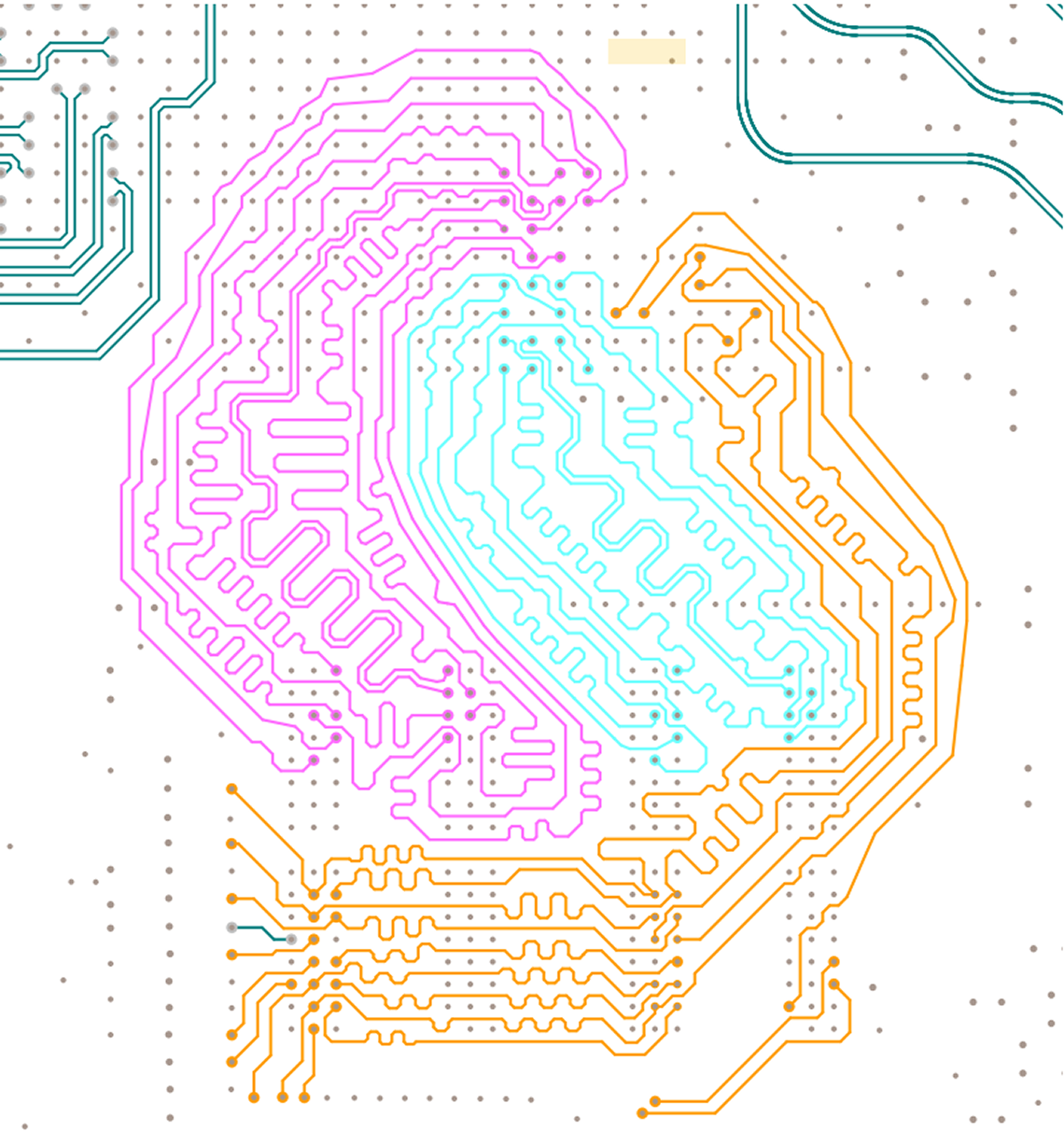

PCB design: DDR4 design, impedance control, SI/EMI optimization, and ensuring the return path meets standards.

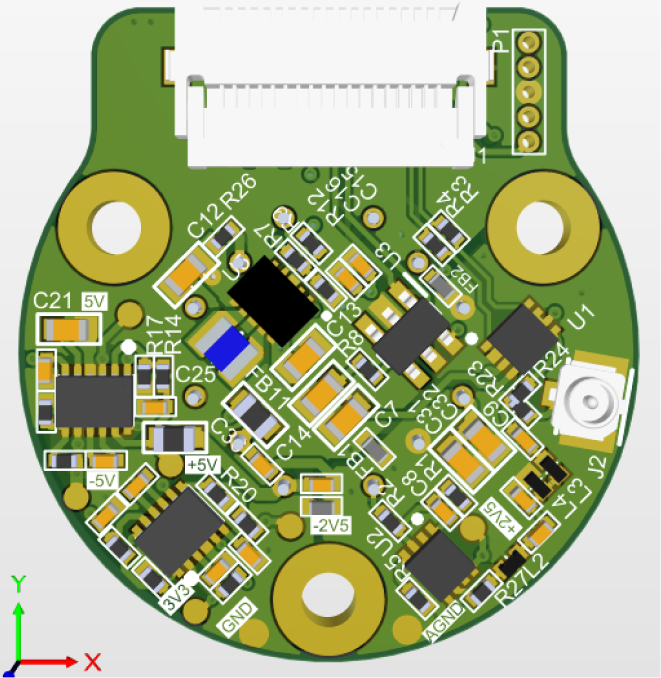

PCB design: Optimal analog-digital layout, noise reduction, optimized grounding, and design feasibility within limited space.

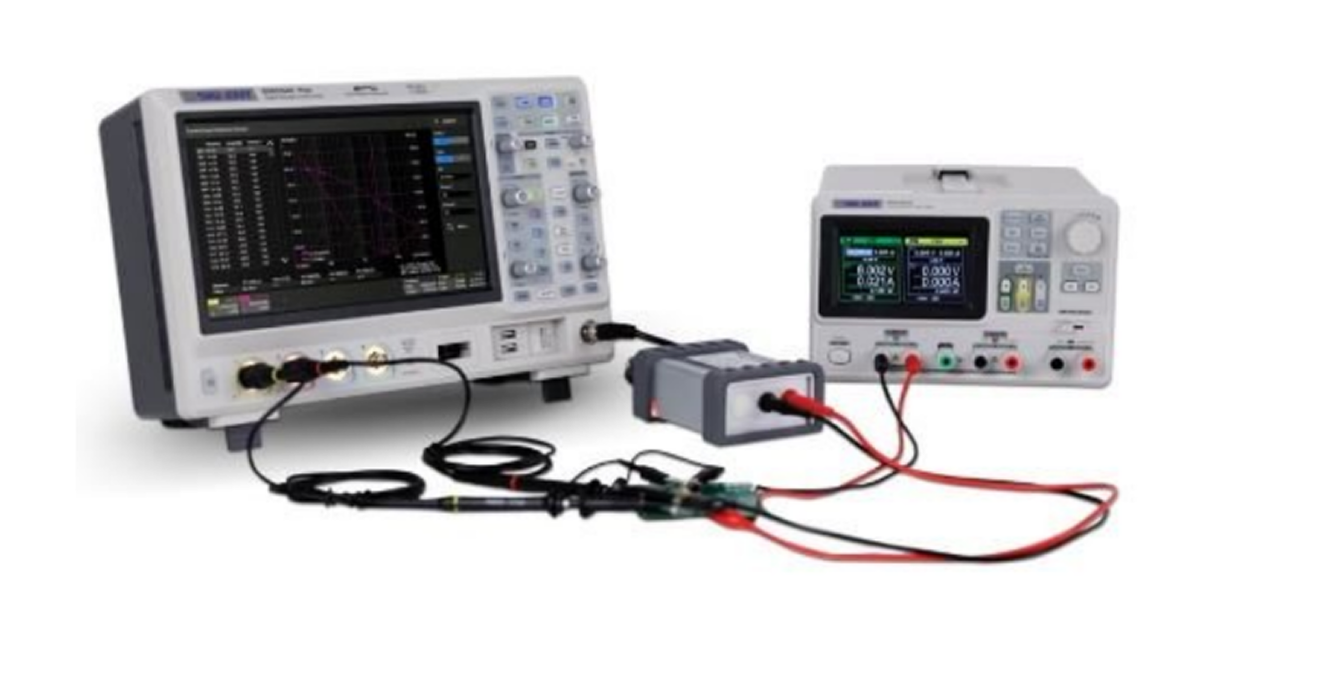

Bring-up/Debug Support: We provide bring-up and debugging support for new designs using oscilloscopes, DC power supplies, and specialized measuring equipment.

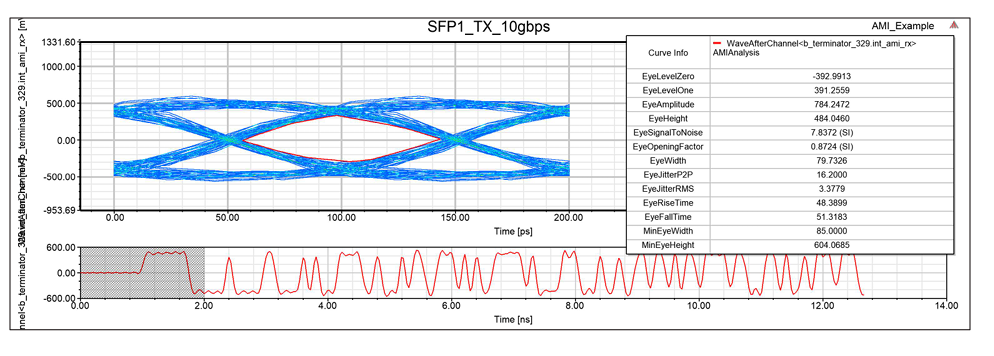

SI/PI simulations are conducted to evaluate signal quality by performing impedance sweeps and transmission-line modeling, ensuring that both signal amplitude and eye opening meet the required specifications for high-speed communication interfaces.

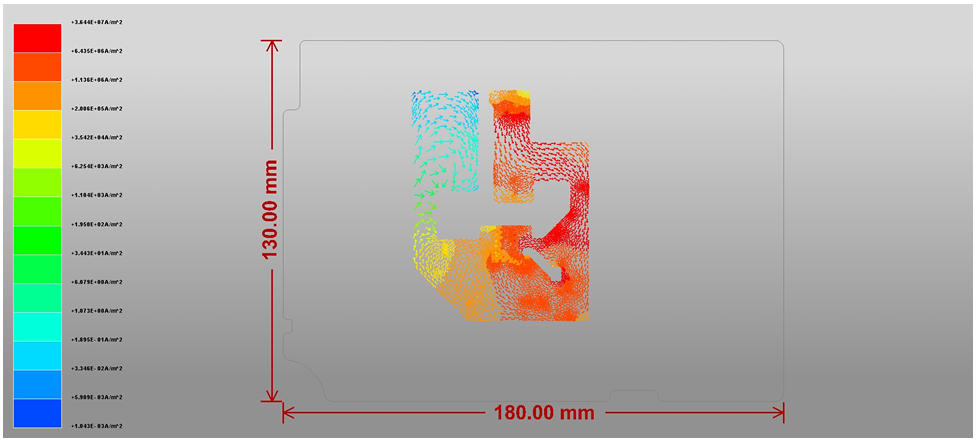

Identifies regions of high electron current density that cause localized heating, supporting layout optimization to improve reliability and reduce the risk of component failure.
l08_pwr2 (Voltage Plot)
l09_pwr3 (Voltage Plot)
l10_pwr4 (Voltage Plot)
l11_gnd4 (Voltage Plot)

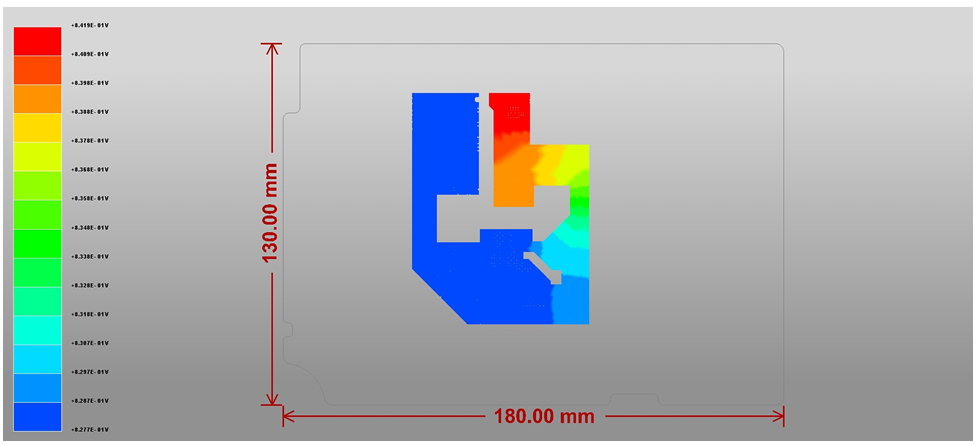

Simulates current distribution and voltage drop across the entire board, enabling optimization of power delivery paths, minimizing voltage loss, and improving overall system stability.
WE DESIGN WITH
We utilize industry-standard SI/PI simulation toolkits, enabling transparent version management, optimized design, and consistent workflow.
Ansys SI wave
Worrying it may
d.getzbucks
Worrying it may
HyperLynx
Worrying it may

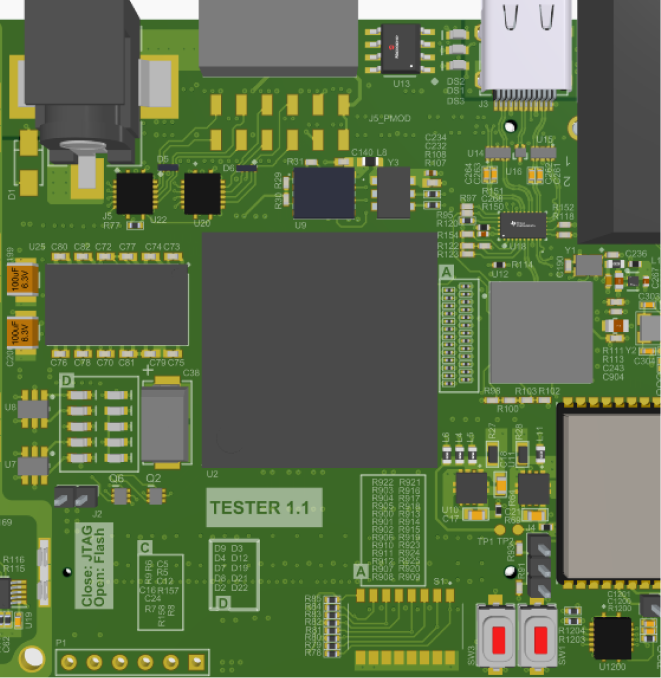

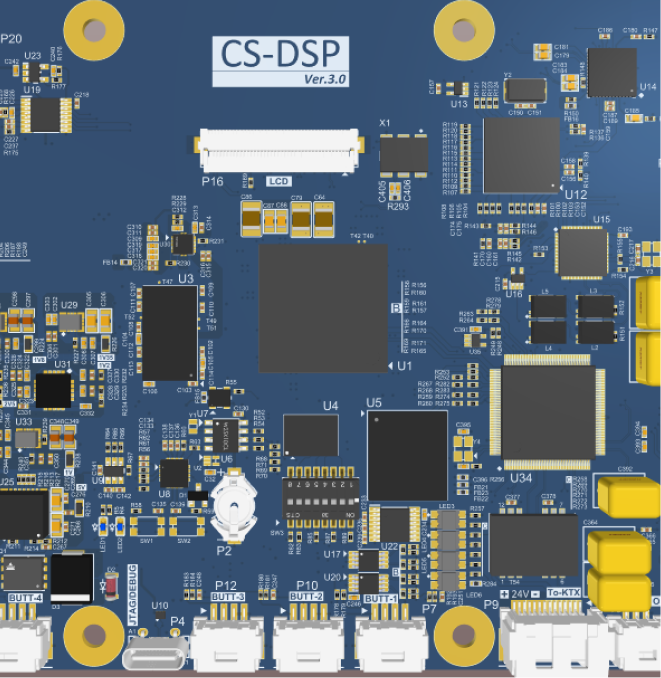

FIDUCIALX’S FEATURED PROJECTS
From prototype design to production board, FiducialX flexibly meets deadlines, technical requirements, and product timelines.
Comming Soon
From early prototypes to production boards, we adapt to your pace, requirements, and roadmap.From early prototypes to production boards, we adapt to your pace, requirements, and roadmap.
28
Dec
FX paid a visit to NEPCON Vietnam 2022 - The only Electronic Trade Show in Vietnam about SMT, Testing Technology, Equipment, and Supporting Industry for Electronic Manufacturing - which was held at the Viet Xo Friendship Labour Cultural Palace,
